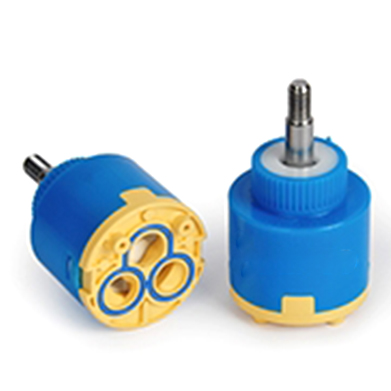

Product Description
Ø35mm Ceramic Cartridge
Joystick Type
Without Distributor
  • CAP0045 Ceramic Cartridge Ø35mm OD
  • CAP0045 Ceramic Cartridge Ø35mm OD
  • CAP0045 Ceramic Cartridge Ø35mm OD
  • CAP0045 Ceramic Cartridge Ø35mm OD
  • CAP0045 Ceramic Cartridge Ø35mm OD
Product Description
Ø35mm Ceramic Cartridge
Joystick Type
Without Distributor

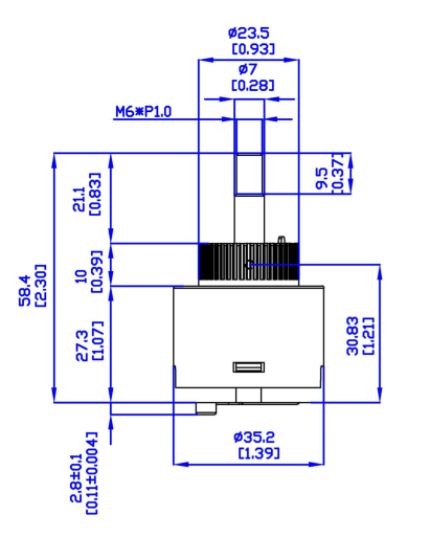

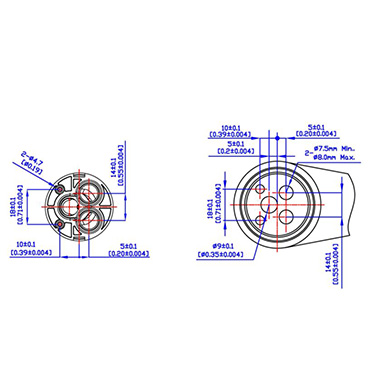

Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle 21.5°/25°
Max. rotary angle 360°/180°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000 cycles (EN817)
Flow rate-TYPE Ⅰ opening angle (21.5°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 5.84 6.52 14.84
2 bar 7.72 9.64 20.80
3 bar 9.32 11.40 24.72

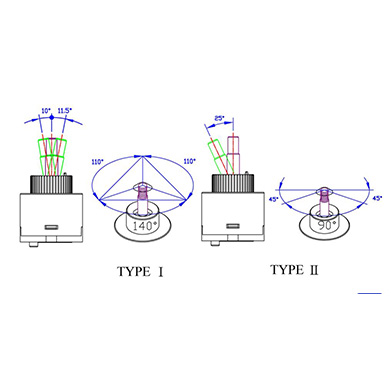

Flow rate-TYPE Ⅱ opening angle (25°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 6.00 6.44 13.56
2 bar 7.92 9.00 19.32
3 bar 9.56 10.50 22.80
