• CAP0044 Ceramic Cartridge 35mm OD

•
•
•
•

Product Description

• Ø35mm Outlet in Front Cartridge / Without Distributor

•
•
•
•

Inquiry Prev Next

Product Description

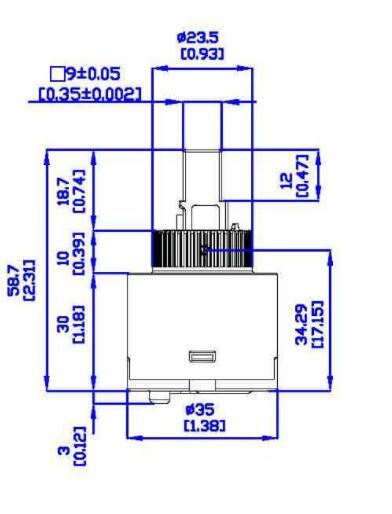

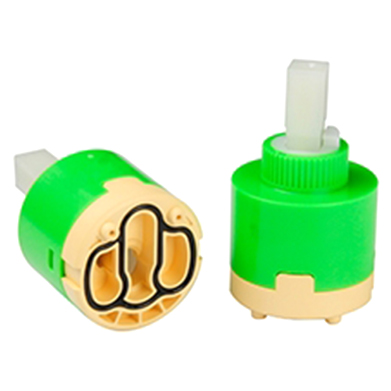

Ø35mm Ceramic Cartridge
Outlet in Front Cartridge

Without Distributor

Option : Temp. Adjuster, Noise Reducer

Product Specification

Technical characteristics of the ceramic discs
Material	AL2O3 92%~96%
Surface roughness	Ra 0.1 ~ Ra 0.3 μm
Hardness	＞1000 HV
Flatness	＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle	24.5°

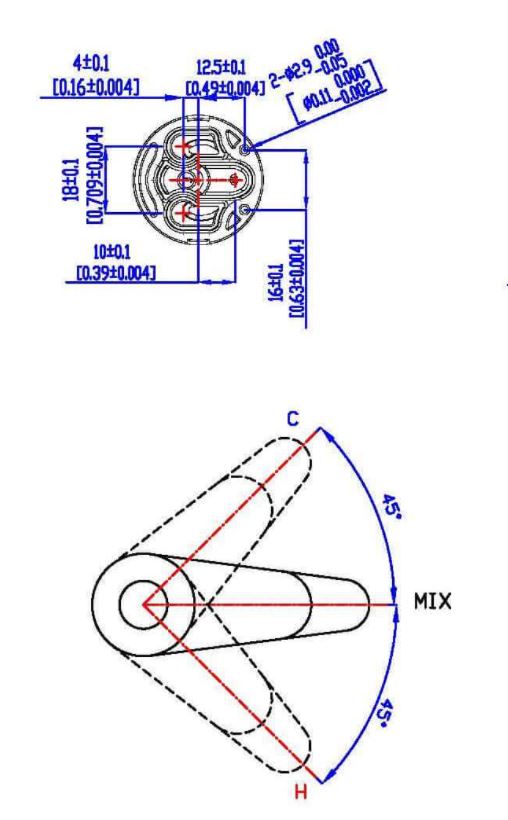

Max. rotary angle	90°
Recommended nut tightening torque	8~10 N.m
Water resistance pressure	350~500 psi
Max. temperature	90℃(194℉)
Endurance test	500,000 cycles (ASME A112.18.1) 70,000 cycles (EN817)
Flow rate
Water pressure	Hot water (L/min)	Cold water (L/min)	Mixing (L/min)
1 bar	6.60	8.00	10.50
2 bar	9.60	11.00	15.00
3 bar	11.40	13.60	18.0
