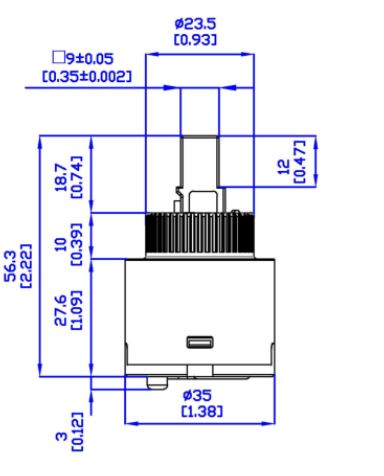

CAP0043 Ceramic Cartridge 35mm OD

Product Description

Ø35mm Ceramic Cartridge
Low Torque Structure Type(Thick Base Seal)

Without Distributor

Option : Temp. Adjuster, Noise Reducer

Inquiry Prev Next

Product Description

Ø35mm Ceramic Cartridge
Low Torque Structure Type(Thick Base Seal)

Without Distributor

Option : Temp. Adjuster, Noise Reducer

Product Specification

Technical characteristics of the ceramic discs
Material	AL₂O₃ 92%~96%
Surface roughness	Ra 0.1 ~ Ra 0.3 μm
Hardness	＞1000 HV
Flatness	＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle	24°
Max. rotary angle	90°
Recommended nut tightening torque	8~10 N.m
Water resistance pressure	350~500 psi
Max. temperature	90℃(194℉)
Endurance test	500,000 cycles (ASME A112.18.1) 70,000 cycles (EN817)
Flow rate
Water pressure	Hot water (L/min)	Cold water (L/min)	Mixing (L/min)
1 bar	13.30	13.60	16.80
2 bar	18.00	19.11	22.30
3 bar	20.30	22.90	27.80
