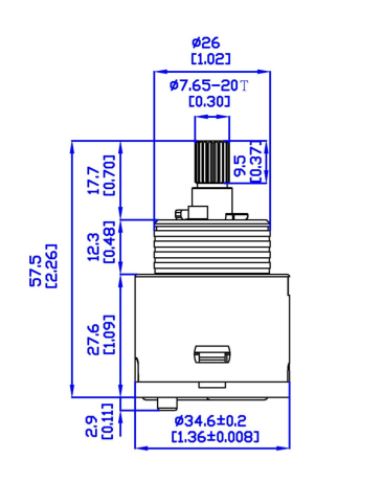

• CAP0046 Ceramic Cartridge Ø35mm OD

•
•
•
•
•

Product Description

Ø35mm Ceramic Cartridge
Rotary Type

Without Distributor

•
•
•
•
•

Inquiry Prev Next

Product Description

Ø35mm Ceramic Cartridge
Rotary Type

Without Distributor

Product Specification

Technical characteristics of the ceramic discs
Material	AL2O3 92%~96%
Surface roughness	Ra 0.1 ~ Ra 0.3 μm
Hardness	＞1000 HV
Flatness	＜0.6 μm
Technical characteristics of the cartridge

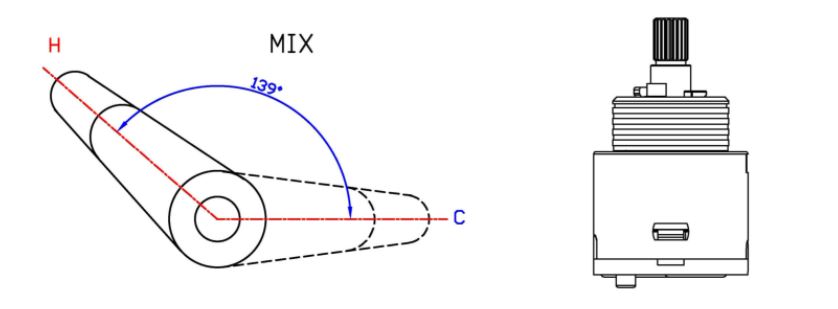

Max. rotary angle	139°
Recommended nut tightening torque	8~10 N.m
Water resistance pressure	350~500 psi
Max. temperature	90℃(194℉)
Endurance test	500,000 cycles (ASME A112.18.1) 70,000 cycles (EN817)
Flow rate
Water pressure	Hot water (L/min)	Cold water (L/min)	Mixing (L/min)
1 bar	8.16	8.00	12.32
2 bar	11.08	10.84	19.04
3 bar	13.48	13.12	23.08
