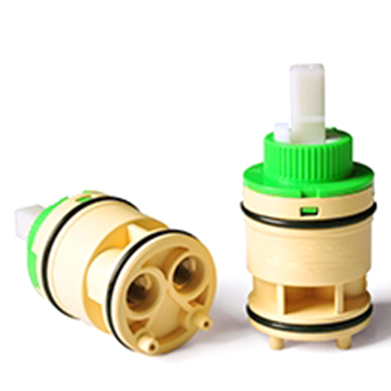

• CAP0032 Ceramic Cartridge 35mm OD

•
•
•
•
•
•

Product Description

Ø40mm Ceramic Cartridge
Connected Pipe Type

With Distributor

Option : Temp.Adjuster, Noise Reducer

•
•
•
•
•
•

Inquiry Prev Next

Product Description

Ø40mm Ceramic Cartridge
Connected Pipe Type

With Distributor

Option : Temp.Adjuster, Noise Reducer

Product Specification

Technical characteristics of the ceramic discs
Material	AL2O3 92%~96%
Surface roughness	Ra 0.1 ~ Ra 0.3 μm
Hardness	＞1000 HV
Flatness	＜0.6 μm
Technical characteristics of the cartridge

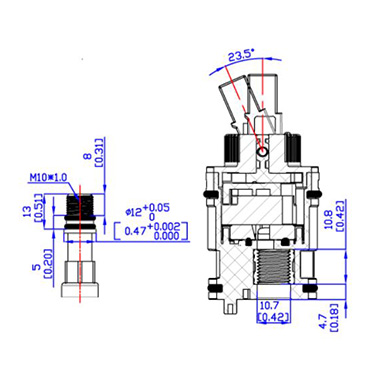

Max. opening angle	24.5°

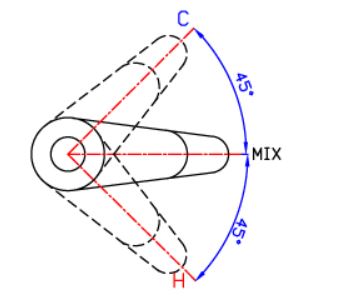

Max. rotary angle	90°
Recommended nut tightening torque	10~12 N.m
Water resistance pressure	350~500 psi
Max. temperature	90℃(194℉)
Endurance test	500,000 cycles (ASME A112.18.1) 70,000 cycles (EN817)
Flow rate
Water pressure	Hot water (L/min)	Cold water (L/min)	Mixing (L/min)
1 bar	13.32	13.64	15.28
2 bar	18.32	18.00	21.52
3 bar	21.44	21.60	27.20
