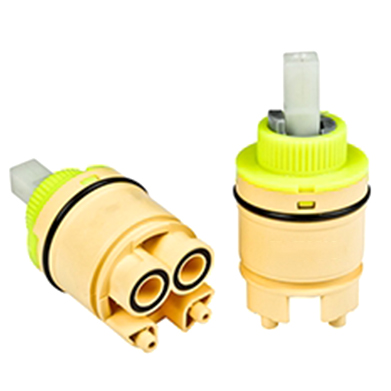

CAP0031 Ceramic Cartridge 35mm OD

  • CAP0031 Ceramic Cartridge 35mm OD
  • CAP0031 Ceramic Cartridge 35mm OD
  • CAP0031 Ceramic Cartridge 35mm OD
  • CAP0031 Ceramic Cartridge 35mm OD
  • CAP0031 Ceramic Cartridge 35mm OD
Product Description
NEW Ø35mm Ceramic Cartridge
Side-Outlet Type+Cold (Hot) Only Type
With Distributor
  • CAP0031 Ceramic Cartridge 35mm OD
  • CAP0031 Ceramic Cartridge 35mm OD
  • CAP0031 Ceramic Cartridge 35mm OD
  • CAP0031 Ceramic Cartridge 35mm OD
  • CAP0031 Ceramic Cartridge 35mm OD
Product Description
NEW Ø35mm Ceramic Cartridge
Side-Outlet Type+Cold (Hot) Only Type
With Distributor
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge

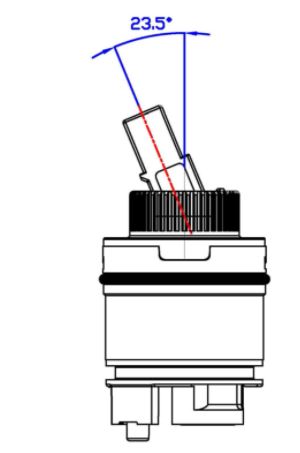

Max. opening angle 23.5°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000 cycles (EN817)
Flow rate
Water
pressure		 Hot/Cold
(L/min)
1 bar 17.36
2 bar 23.84
3 bar 28.76
