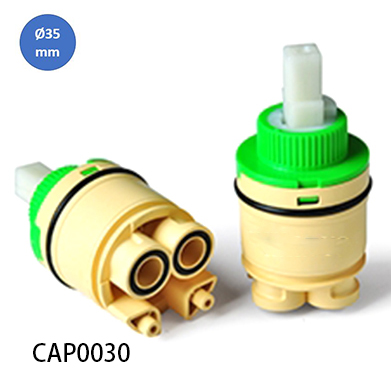

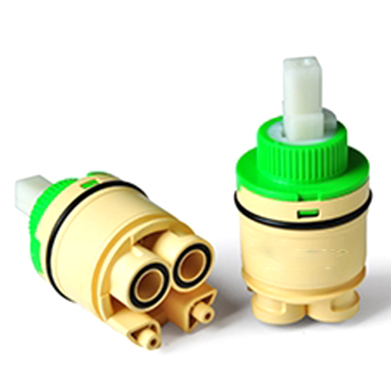

CAP0030 Ceramic Cartridge 35mm OD

  • CAP0030 Ceramic Cartridge 35mm OD
  • CAP0030 Ceramic Cartridge 35mm OD
  • CAP0030 Ceramic Cartridge 35mm OD
  • CAP0030 Ceramic Cartridge 35mm OD
  • CAP0030 Ceramic Cartridge 35mm OD
Product Description

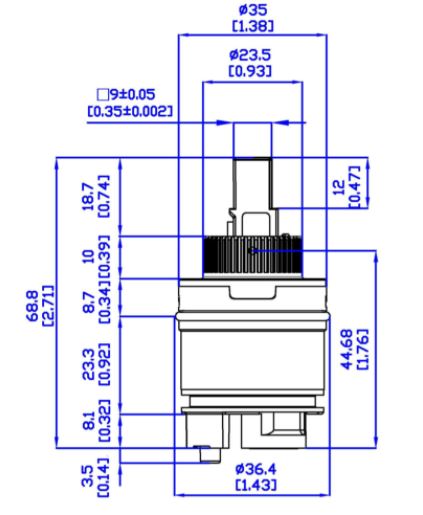

Ø35mm Ceramic Cartridge
Side-Outlet Type
With Distributor
Option : Temp. Adjuster, Noise Reducer
  • CAP0030 Ceramic Cartridge 35mm OD
  • CAP0030 Ceramic Cartridge 35mm OD
  • CAP0030 Ceramic Cartridge 35mm OD
  • CAP0030 Ceramic Cartridge 35mm OD
  • CAP0030 Ceramic Cartridge 35mm OD
Product Description
Ø35mm Ceramic Cartridge
Side-Outlet Type
With Distributor
Option : Temp. Adjuster, Noise Reducer
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle 23.5°
Max. rotary angle 90°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000 cycles (EN817)
Flow rate
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 13.40 12.60 18.80
2 bar 18.00 17.10 25.10
3 bar 21.00 20.30 33.10
