CAP033 Ceramic Cartridge 35mm OD

  • CAP033 Ceramic Cartridge 35mm OD
  • CAP033 Ceramic Cartridge 35mm OD
  • CAP033 Ceramic Cartridge 35mm OD
  • CAP033 Ceramic Cartridge 35mm OD
  • CAP033 Ceramic Cartridge 35mm OD
  • CAP033 Ceramic Cartridge 35mm OD
Product Description

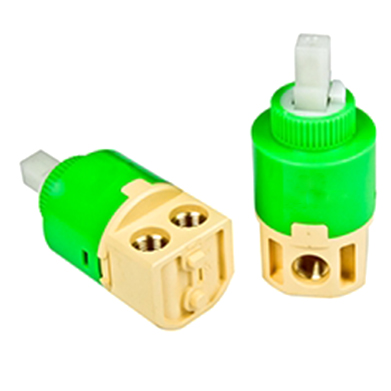

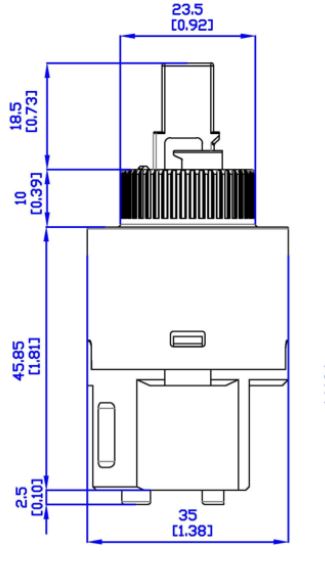

NEW Ø35mm Ceramic Cartridge

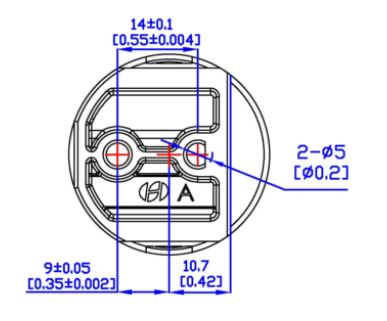

Connected Pipe Type Side In Side Out
With Distributor
  • CAP033 Ceramic Cartridge 35mm OD
  • CAP033 Ceramic Cartridge 35mm OD
  • CAP033 Ceramic Cartridge 35mm OD
  • CAP033 Ceramic Cartridge 35mm OD
  • CAP033 Ceramic Cartridge 35mm OD
  • CAP033 Ceramic Cartridge 35mm OD
Product Description
NEW Ø35mm Ceramic Cartridge
Connected Pipe Type Side In Side Out
With Distributor
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge

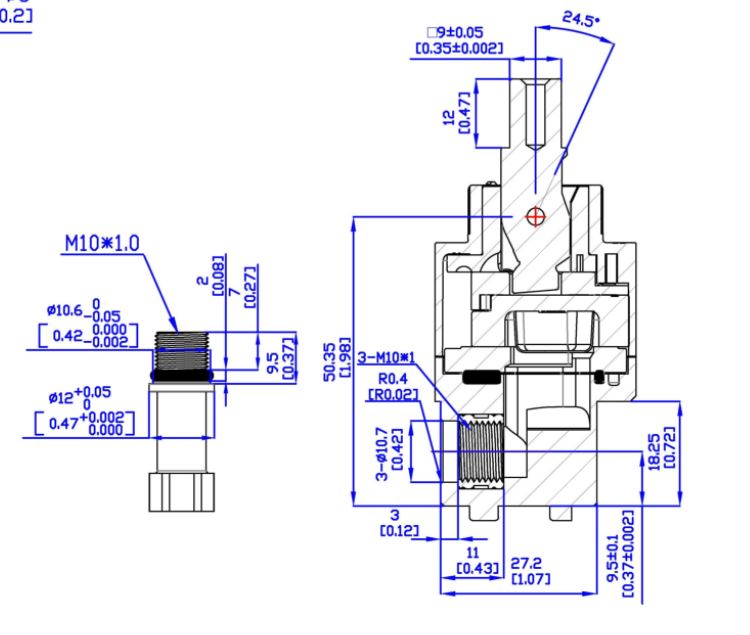

Max. opening angle 24.5°
Max. rotary angle 90°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles(EN817)
Flow rate
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 8.88 8.76 11.48
2 bar 12.04 11.88 15.80
3 bar 14.20 14.40 18.80
