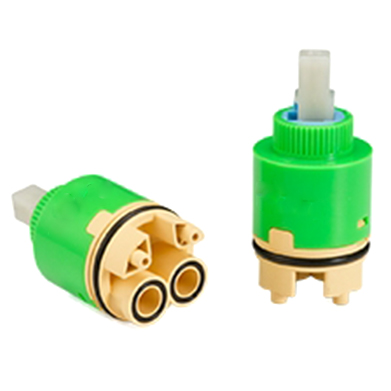

CAP0027 Ceramic Cartridge 35mm OD

  • CAP0027 Ceramic Cartridge 35mm OD
  • CAP0027 Ceramic Cartridge 35mm OD
  • CAP0027 Ceramic Cartridge 35mm OD
  • CAP0027 Ceramic Cartridge 35mm OD
  • CAP0027 Ceramic Cartridge 35mm OD
Product Description
Ø35mm Ceramic Cartridge
Energy-Saving Cartridge
With Distributor
Option: Temp. Limited Ring, Noise Reducer
  • CAP0027 Ceramic Cartridge 35mm OD
  • CAP0027 Ceramic Cartridge 35mm OD
  • CAP0027 Ceramic Cartridge 35mm OD
  • CAP0027 Ceramic Cartridge 35mm OD
  • CAP0027 Ceramic Cartridge 35mm OD
Product Description
Ø35mm Ceramic Cartridge
Energy-Saving Cartridge
With Distributor
Option: Temp. Limited Ring, Noise Reducer
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ≧1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Nut Lock Torque 8~10 N.m
Searling Test/Pressure Resistance 100 psi(Air Pressure) 350-500 psi(Water Pressure)
Max. Temperature 90℃ (194℉)
Min. Temperature 3.9℃ (39℉)
Recommended Temp. 3.9℃~82℃(39℉~180℉)
Operating Torque ≦0.5 N.m
Life Test ≧500,000cycles (ASME A112.18.1)
≧70,000cycles (EN817)
Flow rate
Water Pressure Hot
(L/min)		 Cold
(L/min)		 Mixing
(L/min)
1 bar 10.84 9.64 14.2
2 bar 14.8 13.48 19.44
3 bar 17.48 16.16 23.6
