CAP0028 Ceramic Cartridge 35mm OD

  • CAP0028 Ceramic Cartridge 35mm OD
  • CAP0028 Ceramic Cartridge 35mm OD
  • CAP0028 Ceramic Cartridge 35mm OD
  • CAP0028 Ceramic Cartridge 35mm OD
  • CAP0028 Ceramic Cartridge 35mm OD
  • CAP0028 Ceramic Cartridge 35mm OD

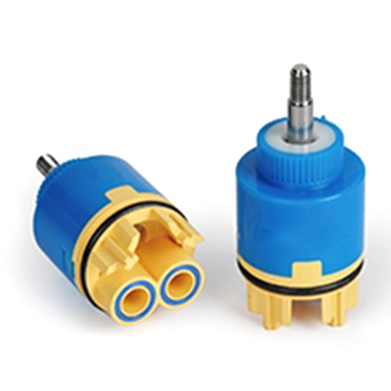

Product Description
Ø35mm Ceramic Cartridge
Joystick Type
With Distributor
  • CAP0028 Ceramic Cartridge 35mm OD
  • CAP0028 Ceramic Cartridge 35mm OD
  • CAP0028 Ceramic Cartridge 35mm OD
  • CAP0028 Ceramic Cartridge 35mm OD
  • CAP0028 Ceramic Cartridge 35mm OD
  • CAP0028 Ceramic Cartridge 35mm OD
Product Description
Ø35mm Ceramic Cartridge
Joystick Type
With Distributor

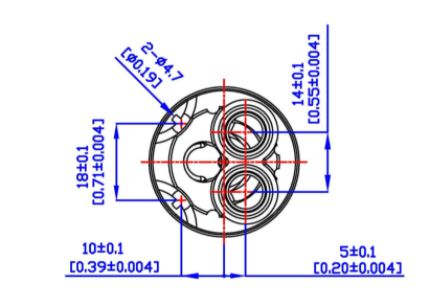

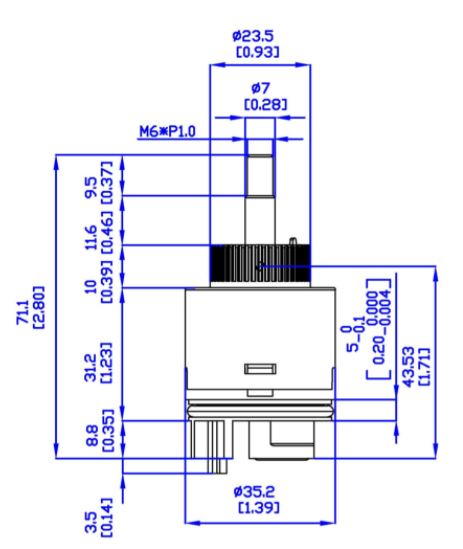

Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle 21.5°/25°
Max. rotary angle 360°/180°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000 cycles (EN817)

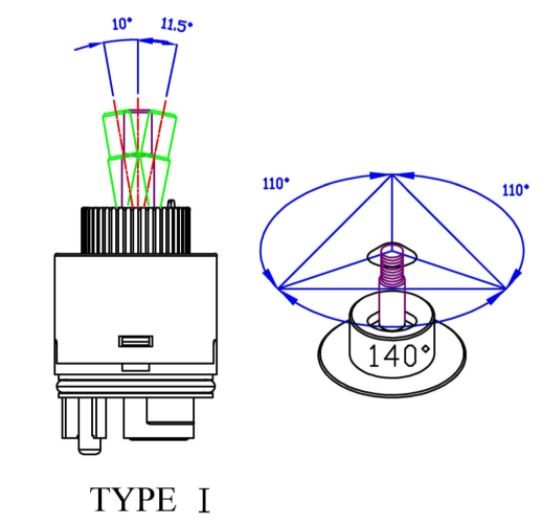

Flow rate-TYPE Ⅰ opening angle (21.5°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 6.12 6.32 15.92
2 bar 8.56 8.76 21.00
3 bar 10.20 10.40 24.76

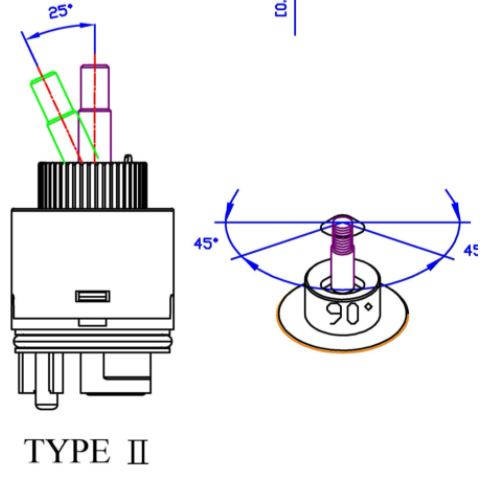

Flow rate-TYPE Ⅱ opening angle (25°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 6.52 6.48 15.60
2 bar 8.68 9.00 21.60
3 bar 10.40 10.50 25.40
