Product Description

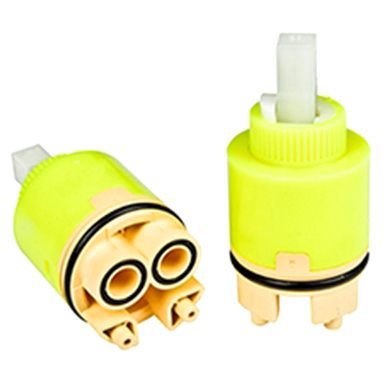

NEW Ø35mm Ceramic Cartridge
Cold (Hot) Only Type

With Distributor

Low Torque Structure Type

•
•
•
•

Inquiry Prev Next

Product Description

NEW Ø35mm Ceramic Cartridge
Cold (Hot) Only Type

With Distributor

Low Torque Structure Type

Product Specification

Technical characteristics of the ceramic discs
Material	AL2O3 92%~96%
Surface roughness	Ra 0.1 ~ Ra 0.3 μm
Hardness	＞1000 HV
Flatness	＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle	24.5°
Recommended nut tightening torque	8~10 N.m
Water resistance pressure	350~500 psi
Max. temperature	90℃(194℉)
Endurance test	500,000 cycles (ASME A112.18.1) 70,000 cycles (EN817)
Flow rate
Water pressure	Hot/Cold (L/min)
1 bar	18.10
2 bar	24.70
3 bar	29.10
