Product Description

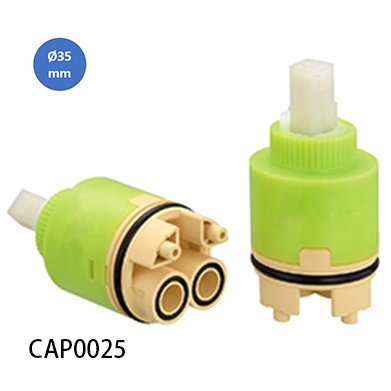

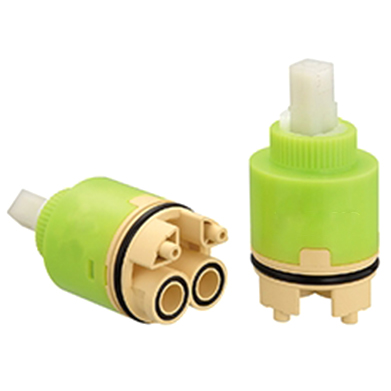

NEW Ø35mm Ceramic Cartridge
Water-Saving Type (2 Steps)
With Distributor
Option : Noise Reducer
  • CAP0025 Ceramic Cartridge 35mm OD
  • CAP0025 Ceramic Cartridge 35mm OD
  • CAP0025 Ceramic Cartridge 35mm OD
  • CAP0025 Ceramic Cartridge 35mm OD
  • CAP0025 Ceramic Cartridge 35mm OD
Product Description
NEW Ø35mm Ceramic Cartridge
Water-Saving Type (2 Steps)
With Distributor
Option : Noise Reducer
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
1st step opening angle / Max. opening angle 10° / 24.5°

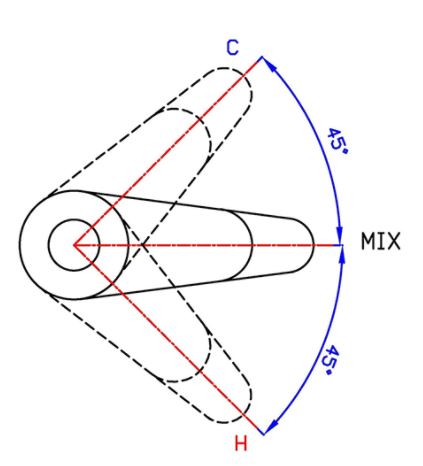

Max. rotary angle 90°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles (EN817)
Flow rate-1st step opening angle (10°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 6.30 6.50 4.50
2 bar 8.40 9.10 6.20
3 bar 10.50 10.90 7.50
Flow rate-Max. opening angle (24.5°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 10.00 10.50 12.10
2 bar 14.00 14.70 16.70
3 bar 16.80 17.80 20.20
