Product Description

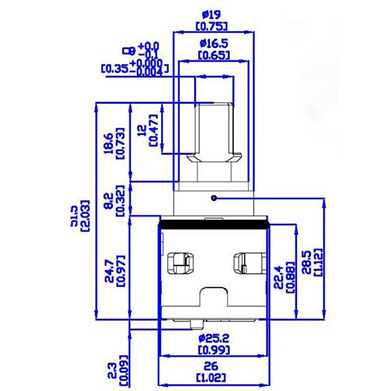

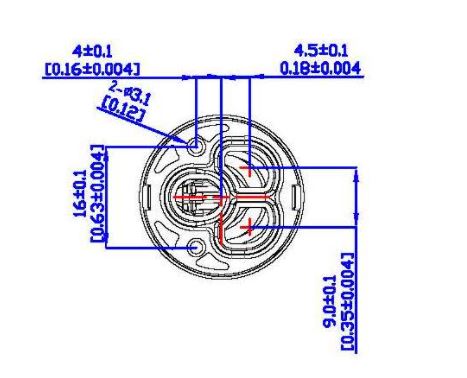

Ø25mm Ceramic Cartridge
House Open Type
Without Distributor
  • CAP0020 Ceramic Cartridge 25mm OD
  • CAP0020 Ceramic Cartridge 25mm OD
  • CAP0020 Ceramic Cartridge 25mm OD
  • CAP0020 Ceramic Cartridge 25mm OD
  • CAP0020 Ceramic Cartridge 25mm OD
Product Description
Ø25mm Ceramic Cartridge
House Open Type
Without Distributor
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle 20°

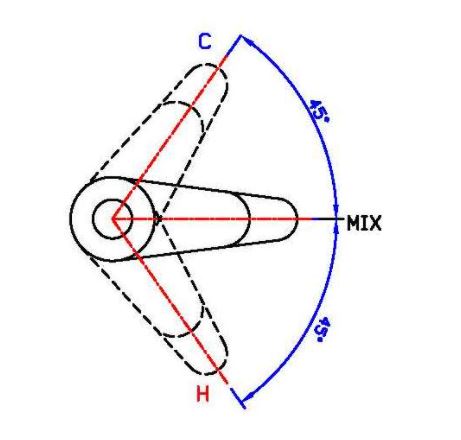

Max. rotary angle 90°
Recommended nut tightening torque 7~8 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles (EN817)
Flow rate
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 8.50 8.50 9.20
2 bar 11.70 11.70 12.40
3 bar 14.10 14.10 16.30
