Product Description

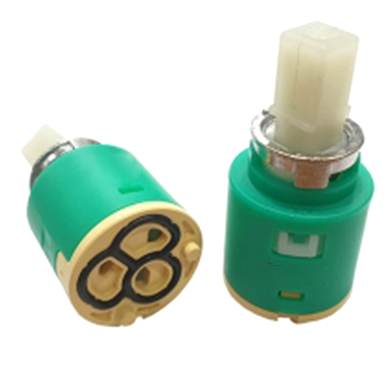

Ø25mm Energy-Saving Cartridge
For Kitchen Faucet; Without Temp Adjuster.
  • CAP0019 Ceramic Cartridge 25mm OD
  • CAP0019 Ceramic Cartridge 25mm OD
  • CAP0019 Ceramic Cartridge 25mm OD
  • CAP0019 Ceramic Cartridge 25mm OD
  • CAP0019 Ceramic Cartridge 25mm OD
  • CAP0019 Ceramic Cartridge 25mm OD
Product Description
Ø25mm Energy-Saving Cartridge
For Kitchen Faucet; Without Temp Adjuster.
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ≧1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Nut Lock Torque 7~8 N.m
Searling Test/Pressure Resistance 100 psi(Air Pressure) 500 psi(Water Pressure)
Max. Temperature 90℃ (194℉)
Min. Temperature 3.9℃ (39℉)
Recommended Temp. 3.9℃~82℃(39℉~180℉)
Operating Torque 02~0.5 N.m
Life Test ≧500,000cycles (ASME A112.18.1)
≧70,000cycles (EN817)
Flow rate
Water Pressure Hot
(L/min)		 Cold
(L/min)		 Mixing
(L/min)
1 bar 4.36 4 5.6
2 bar 5.88 5.52 8.2
3 bar 7.04 6.64 10.04
