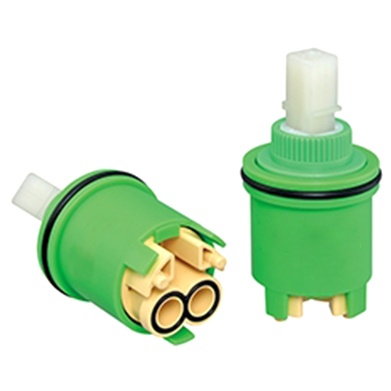

CAP0021 Ceramic Cartridge 32mm OD

  • CAP0021 Ceramic Cartridge 32mm OD
  • CAP0021 Ceramic Cartridge 32mm OD
  • CAP0021 Ceramic Cartridge 32mm OD
  • CAP0021 Ceramic Cartridge 32mm OD
  • CAP0021 Ceramic Cartridge 32mm OD
Product Description

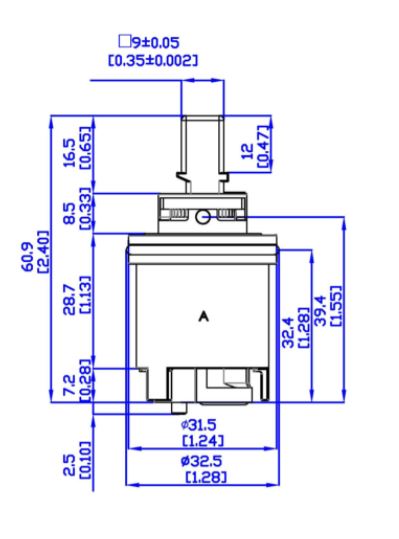

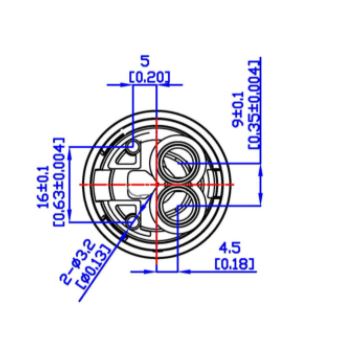

Ø32mm Ceramic Cartridge
Side-Outlet Type
With Distributor
  • CAP0021 Ceramic Cartridge 32mm OD
  • CAP0021 Ceramic Cartridge 32mm OD
  • CAP0021 Ceramic Cartridge 32mm OD
  • CAP0021 Ceramic Cartridge 32mm OD
  • CAP0021 Ceramic Cartridge 32mm OD
Product Description
Ø32mm Ceramic Cartridge
Side-Outlet Type
With Distributor
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle 23°

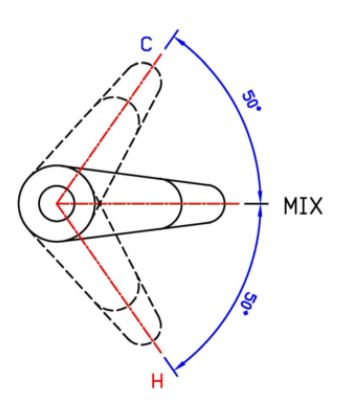

Max. rotary angle 100°
Recommended nut tightening torque 6~7 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles(EN817)
Flow rate
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 4.80 4.89 5.40
2 bar 8.39 8.46 9.04
3 bar 10.29 10.45 11.59
