Product Description

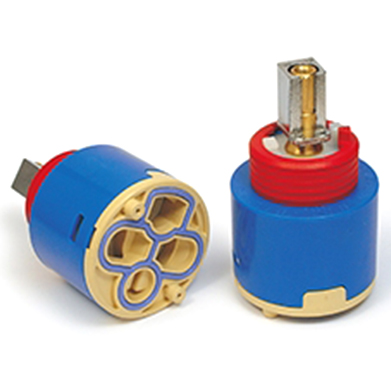

Ø40mm Ceramic Cartridge
Back to Back 180° Reverse Type
Without Distributor
Option : Noise Reducer
  • CAP0064 Ceramic Cartridge Ø40mm OD
  • CAP0064 Ceramic Cartridge Ø40mm OD
  • CAP0064 Ceramic Cartridge Ø40mm OD
  • CAP0064 Ceramic Cartridge Ø40mm OD
Product Description
Ø40mm Ceramic Cartridge
Back to Back 180° Reverse Type
Without Distributor
Option : Noise Reducer
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge

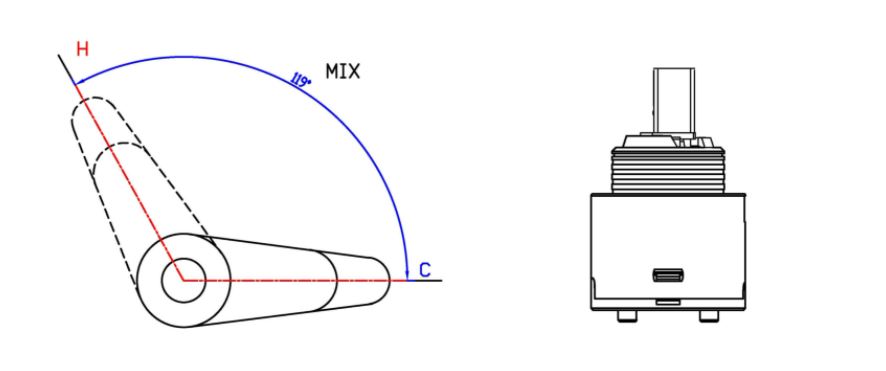

Max. rotary angle 119°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles (EN817)
Flow rate
Water
pressure		 Mixing
(L/min)
1 bar 14.70
2 bar 20.50
3 bar 25.50
