CAP0063 Ceramic Cartridge Ø40mm OD

  • CAP0063 Ceramic Cartridge Ø40mm OD
  • CAP0063 Ceramic Cartridge Ø40mm OD
  • CAP0063 Ceramic Cartridge Ø40mm OD
  • CAP0063 Ceramic Cartridge Ø40mm OD

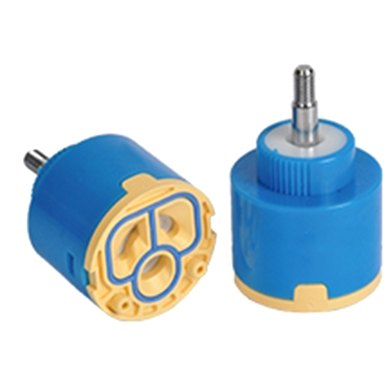

Product Description
Ø40mm Ceramic Cartridge
Joystick type
Without Distributor
  • CAP0063 Ceramic Cartridge Ø40mm OD
  • CAP0063 Ceramic Cartridge Ø40mm OD
  • CAP0063 Ceramic Cartridge Ø40mm OD
  • CAP0063 Ceramic Cartridge Ø40mm OD
Product Description
Ø40mm Ceramic Cartridge
Joystick type
Without Distributor

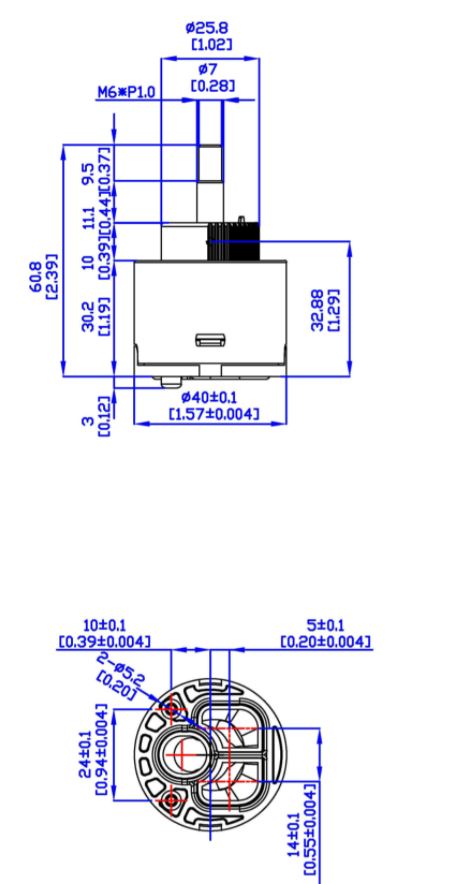

Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle 21.5°/25°
Max. rotary angle 360°/180°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles (EN817)

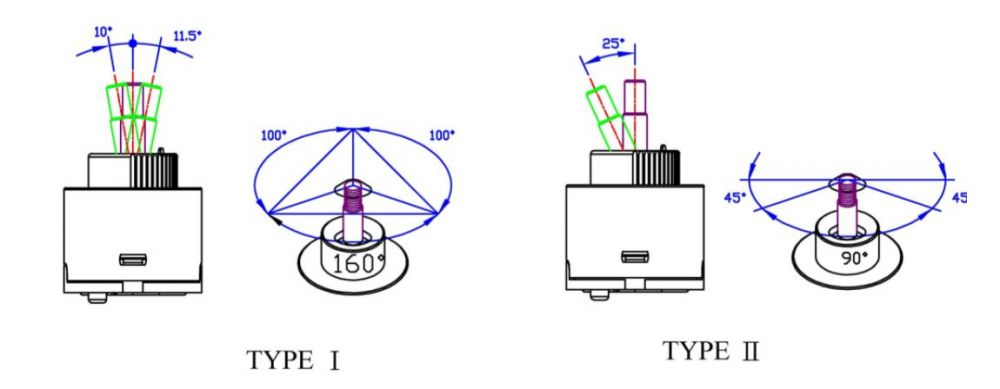

Flow rate-TYPE Ⅰ opening angle (21.5°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 6.52 5.84 14.84
2 bar 8.96 7.72 20.80
3 bar 10.76 9.32 24.72
Flow rate-TYPE Ⅱ opening angle (25°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 5.80 6.00 13.84
2 bar 8.28 8.20 19.00
3 bar 10.00 10.00 22.48
