Product Description
NEW Ø40mm Ceramic Cartridge
Water-Saving Type (2 Steps)
With Distributor
  • CAP0051 Ceramic Cartridge Ø40mm OD
  • CAP0051 Ceramic Cartridge Ø40mm OD
  • CAP0051 Ceramic Cartridge Ø40mm OD
  • CAP0051 Ceramic Cartridge Ø40mm OD
  • CAP0051 Ceramic Cartridge Ø40mm OD
Product Description
NEW Ø40mm Ceramic Cartridge
Water-Saving Type (2 Steps)
With Distributor
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge

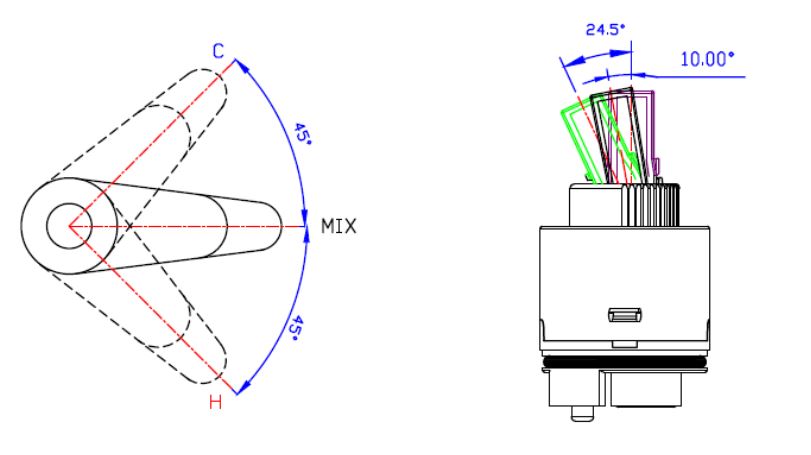

1st step opening angle / Max. opening angle 10° / 24.5°
Max. rotary angle 90°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles (EN817)
Flow rate-1st step opening angle (10°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 4.40 4.90 3.30
2 bar 5.90 6.80 4.60
3 bar 7.20 8.20 5.50
Flow rate-Max. opening angle (24.5°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 12.20 12.40 17.00
2 bar 16.60 17.60 23.20
3 bar 20.40 21.20 28.00
