Product Description

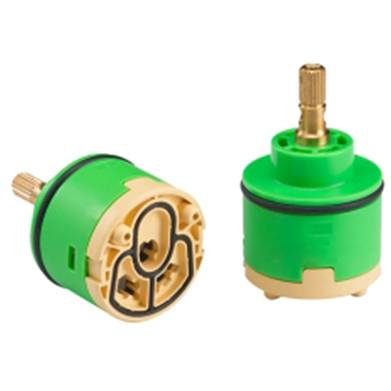

Ø40mm Mixer Diverter Cartridge
Bath & Shower Diverter Cartridge
Side & Bottom outlet
Without Distributor
Option : Square Zinc-Alloy Cap
  • CAP0066 Mixer Diverter Cartridge Ø40mm OD
  • CAP0066 Mixer Diverter Cartridge Ø40mm OD
  • CAP0066 Mixer Diverter Cartridge Ø40mm OD
  • CAP0066 Mixer Diverter Cartridge Ø40mm OD
  • CAP0066 Mixer Diverter Cartridge Ø40mm OD
Product Description
Ø40mm Mixer Diverter Cartridge
Bath & Shower Diverter Cartridge
Side & Bottom outlet
Without Distributor
Option : Square Zinc-Alloy Cap
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge

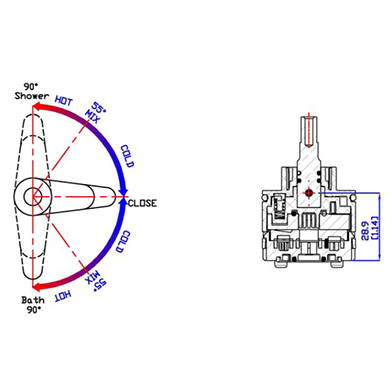

Max. rotary angle in bath position
(clockwise )		 90°
Max. rotary angle in shower position
(counterclockwise)		 90°
Recommended nut tightening torque 10~12 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000 cycles(EN817)
Flow rate-Shower Position/Bottom Outlet
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 4.50 4.20 8.20
2 bar 8.00 5.60 11.40
3 bar 9.40 6.70 13.80
Flow rate-Bath Position/Side Outlet
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 9.20 10.20 15.80
2 bar 12.20 14.20 21.80
3 bar 15.10 16.70 26.10
