Product Description

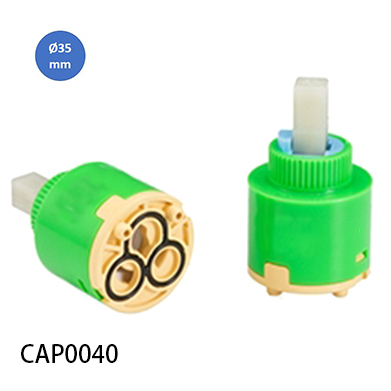

Ø35mm Ceramic Cartridge
Energy-Saving Cartridge
Without Distributor
Option : Temp. Adjuster, Noise Reducer
  • CAP0040 Ceramic Cartridge 35mm OD
  • CAP0040 Ceramic Cartridge 35mm OD
  • CAP0040 Ceramic Cartridge 35mm OD
  • CAP0040 Ceramic Cartridge 35mm OD
  • CAP0040 Ceramic Cartridge 35mm OD
Product Description

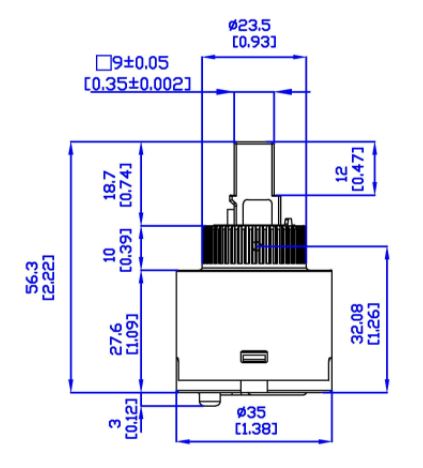

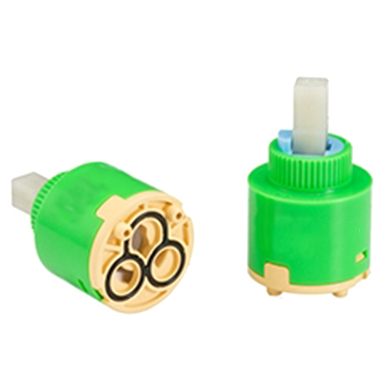

Ø35mm Ceramic Cartridge
Energy-Saving Cartridge
Without Distributor
Option : Temp. Adjuster, Noise Reducer
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge

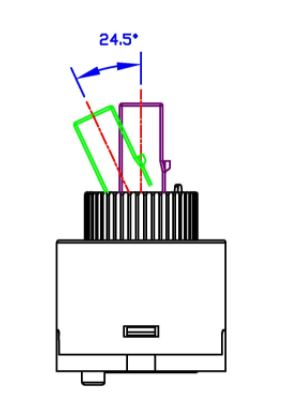

Max. opening angle 24.5°

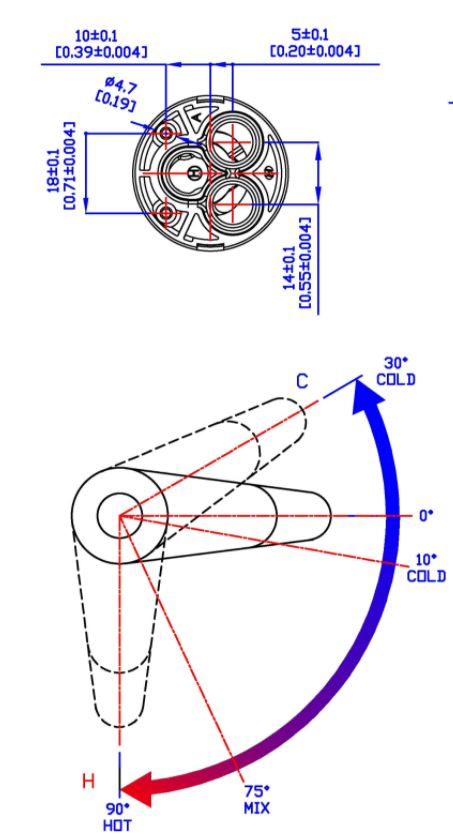

Max. rotary angle 120°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles(EN817)
Flow rate
Water
pressure		 Hot water
(L/min)		 Cold water
(middle position)
(L/min)		 Mixing
(L/min)
1 bar 10.62 9.62 13.96
2 bar 14.35 13.42 19.40
3 bar 17.28 16.20 22.96
