Product Description

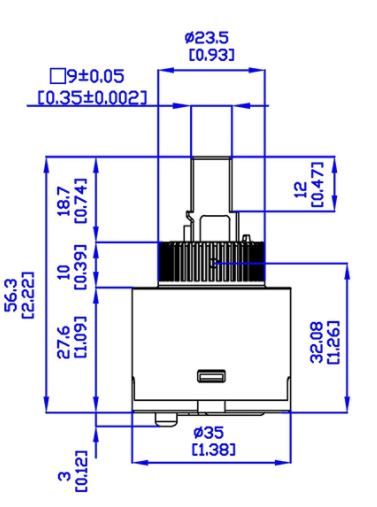

NEW Ø35mm Ceramic Cartridge
Water-Saving Type (2 Steps)
Without Distributor
Option : Noise Reducer
  • CAP0038 Ceramic Cartridge 35mm OD
  • CAP0038 Ceramic Cartridge 35mm OD
  • CAP0038 Ceramic Cartridge 35mm OD
  • CAP0038 Ceramic Cartridge 35mm OD
  • CAP0038 Ceramic Cartridge 35mm OD
Product Description
NEW Ø35mm Ceramic Cartridge
Water-Saving Type (2 Steps)
Without Distributor
Option : Noise Reducer
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
1st step opening angle / Max. opening angle 10° / 24.5°
Max. rotary angle 90°
Recommended nut tightening torque 8~10 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles (EN817)
Flow rate-1st step opening angle (10°)
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 5.60 5.30 4.10
2 bar 8.60 8.30 5.30
3 bar 11.20 11.00 8.80
