CAP0017 Ceramic Cartridge 25mm OD

  • CAP0017 Ceramic Cartridge 25mm OD
  • CAP0017 Ceramic Cartridge 25mm OD
  • CAP0017 Ceramic Cartridge 25mm OD
  • CAP0017 Ceramic Cartridge 25mm OD
  • CAP0017 Ceramic Cartridge 25mm OD
Product Description
Ø25mm Ceramic Cartridge
Low Torque Structure Type
Without Temp Adjuster

  • CAP0017 Ceramic Cartridge 25mm OD
  • CAP0017 Ceramic Cartridge 25mm OD
  • CAP0017 Ceramic Cartridge 25mm OD
  • CAP0017 Ceramic Cartridge 25mm OD
  • CAP0017 Ceramic Cartridge 25mm OD
Product Description
Ø25mm Ceramic Cartridge
Low Torque Structure Type
Without Temp Adjuster
Product Specification
Technical characteristics of the ceramic discs
Material AL2O3 92%~96%
Surface roughness Ra 0.1 ~ Ra 0.3 μm
Hardness ＞1000 HV
Flatness ＜0.6 μm
Technical characteristics of the cartridge
Max. opening angle 23°

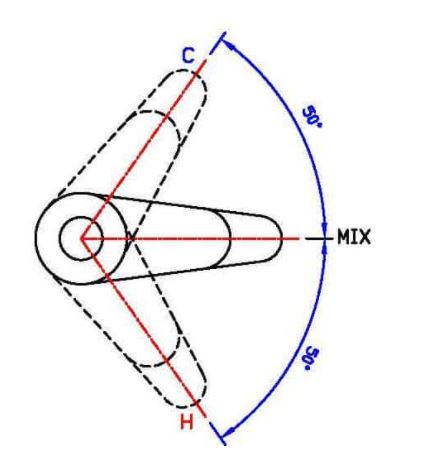

Max. rotary angle 100°
Recommended nut tightening torque 7~8 N.m
Water resistance pressure 350~500 psi
Max. temperature 90℃(194℉)
Endurance test 500,000 cycles (ASME A112.18.1)
70,000cycles (EN817)
Flow rate
Water
pressure		 Hot water
(L/min)		 Cold water
(L/min)		 Mixing
(L/min)
1 bar 6.30 6.50 8.56
2 bar 8.80 9.00 11.16
3 bar 10.80 11.00 14.00
